Input sweep with the GUI#

NeurEco offers the user of the Parametric Frequency Sweep solution the possibility to perform an input sweep. Meaning that for each model, when all the inputs except the one to sweep are set to a certain value, we can check the evolution of each output when the chosen input moves across the entire range of its possible values (these values are deduced from the chosen dataset). The output of this operation is a plot of the chosen output evolution, with an emphasis on the points corresponding to the targets of the selected dataset.

  • Switch to Evaluation panel

  • Click on Input sweep

  • Choose a dataset from Evaluation files and click on it

  • Choose a sample in the dataset (Sample slider)

  • In the Input sweep window set the Input and Outputs (multiple output features can be plotted in the same graph)

  • GUI shows the input sweep graph, like the one bellow:

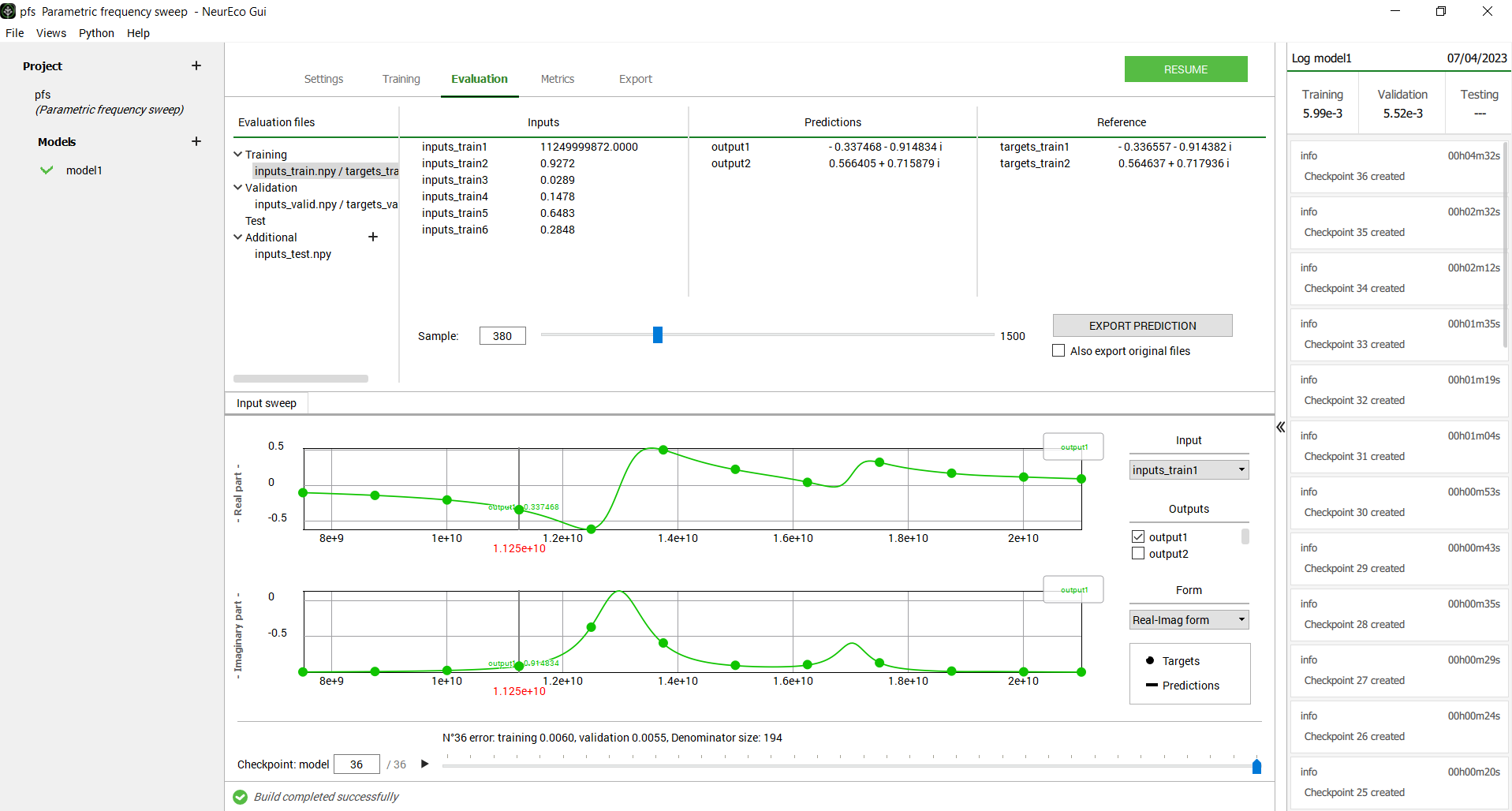

PFS network input sweep example

Parametric Frequency Sweep: input sweep example#

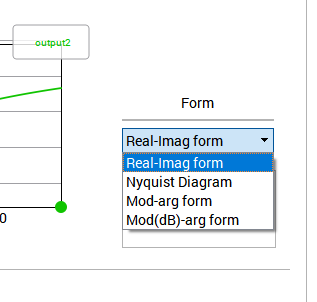

  • Choose the convenient form of the complex number representation (Real-Imag form by default):


PFS network input sweep form

Available forms#
